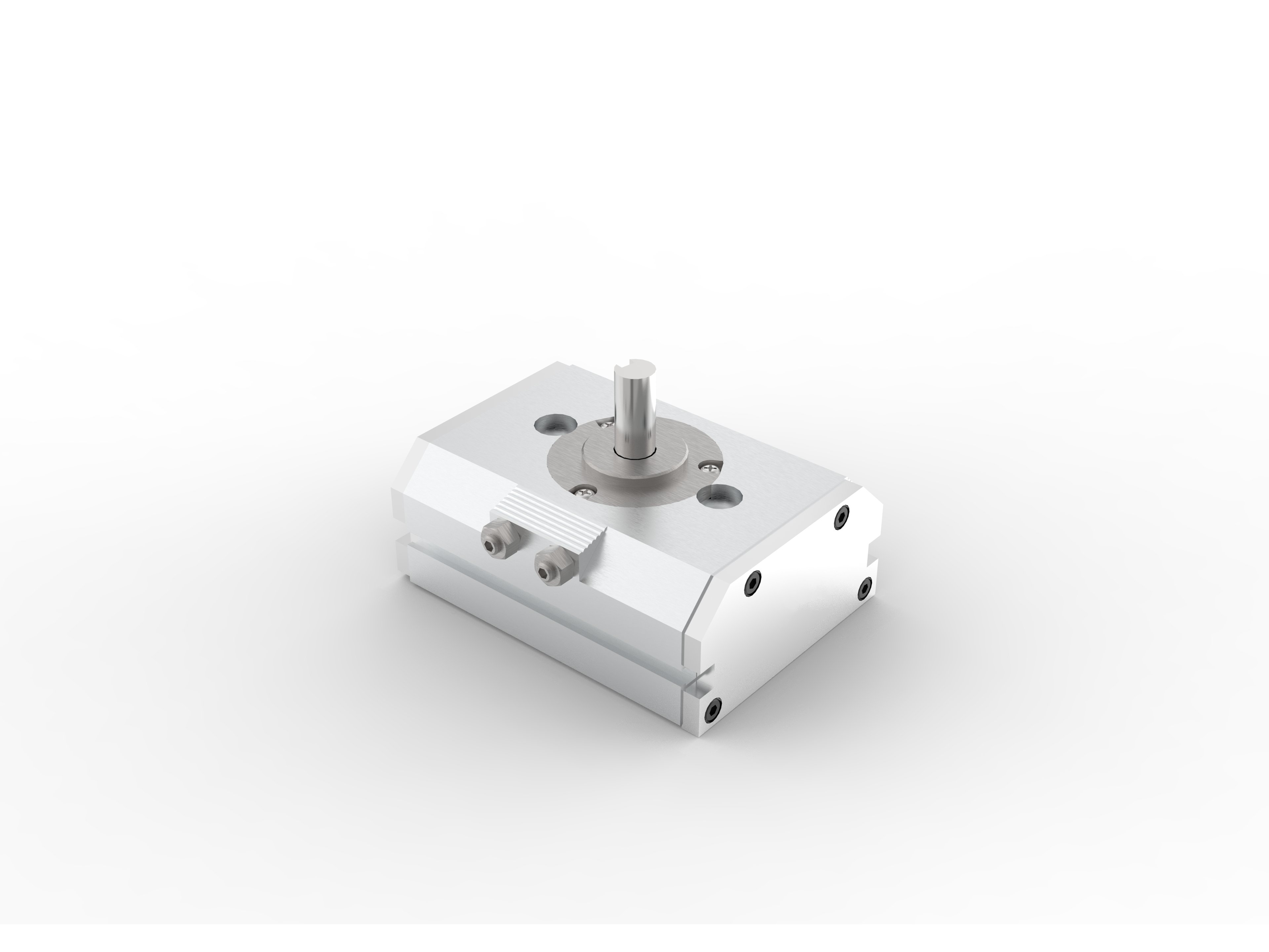

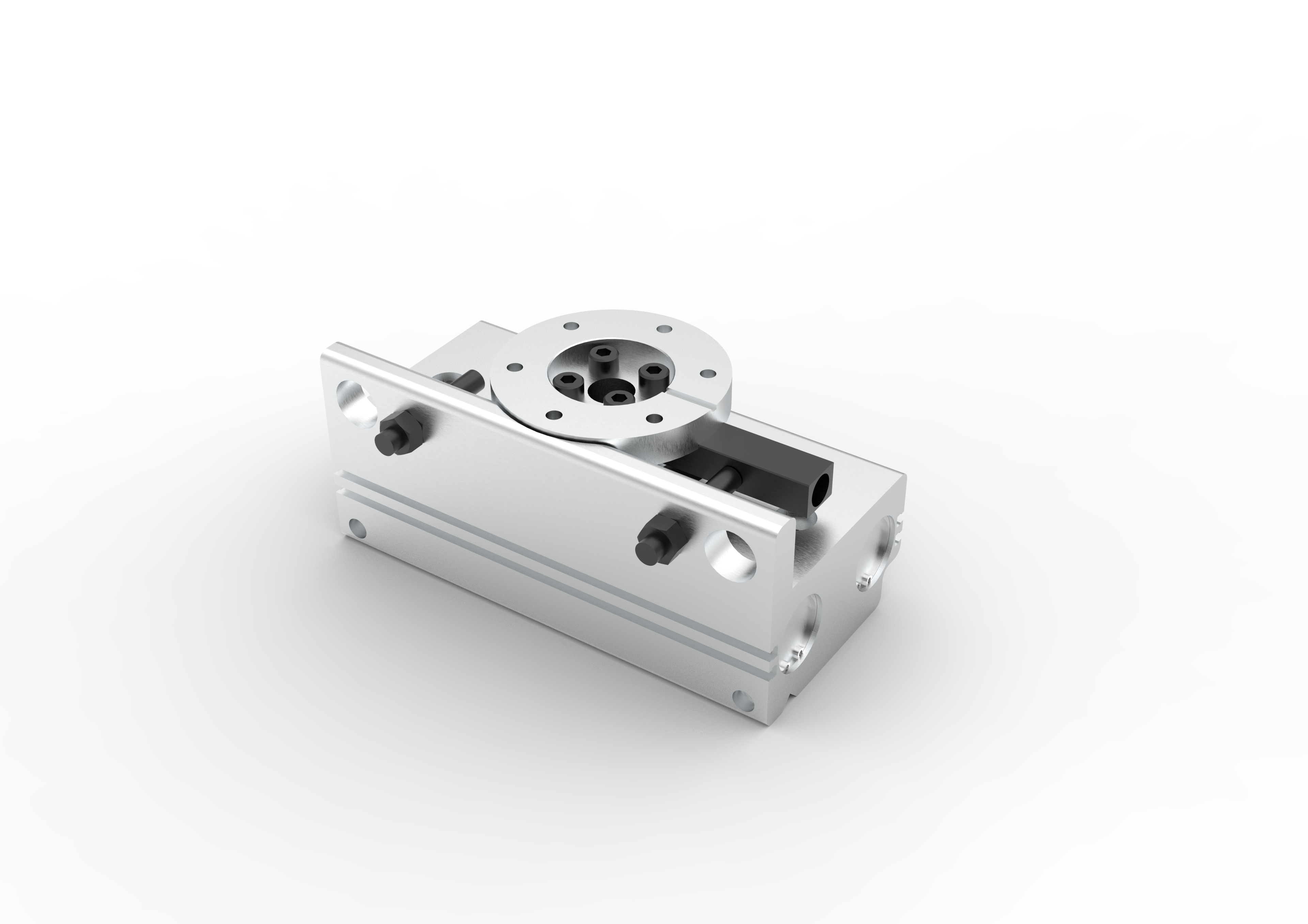

ZRB-20A-R2

Rack type design cuts down on air leaks.

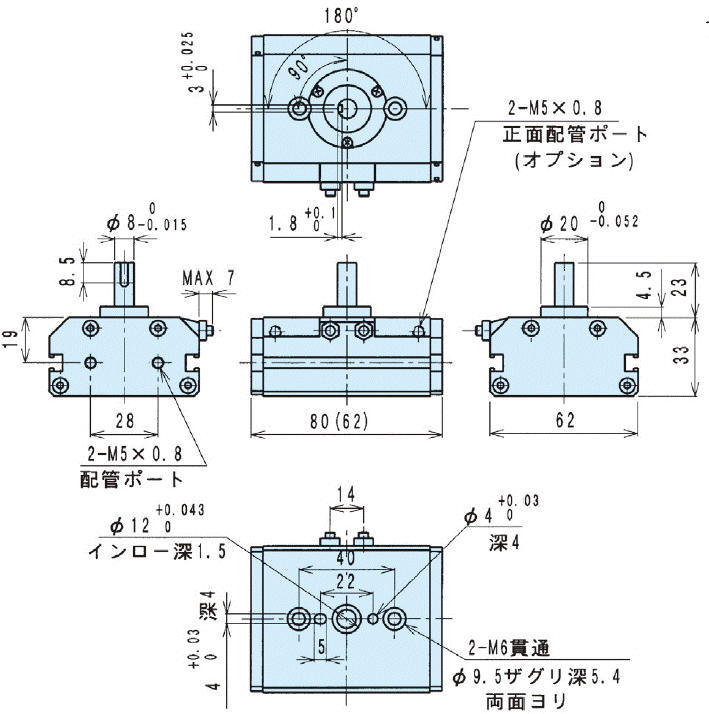

Cylinder diameter: 20mm (X2)    Swivel angle: 180°    Main unit weight: 444g

40% smaller than vane-type design for space savings.

Stopper, piping, and sensors located on same surface.

Through-hole for mounting 2 different directions.

Pin hole processing for positioning, ease of centering when mounting the unit.
